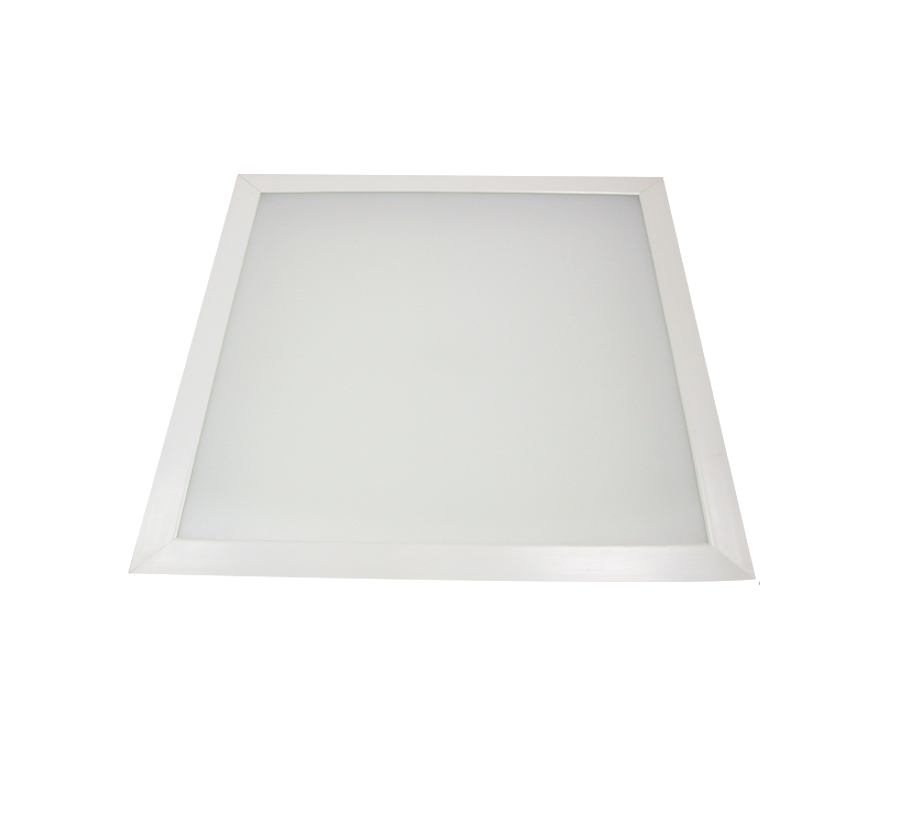

Product Name : LED T-Bar Grid light
Product Description
2x1ft 4x1ft 2x2ft 4x2ft
Model No. RG308A RG308B RG308C RG308D
Dimension 300x600mm 1200x300mm 600x600mm 1200x600mm
Power Consumption 24W 46W 46W 92W
LEDs 288 576 576 1152
Luminous Flux 1200Lm 2458Lm 2496Lm 3648Lm
Input Voltage AC 100~240V AC100~240V AC100~240V AC100~240V
PF > 95 > 95 > 95 > 95
LED Life Span 60000 HR 60000 HR 60000 HR 60000 HR
Beam Angle 150° 150° 150° 150°
CCT WW/NW/CW WW/NW/CW WW/NW/CW WW/NW/CW
CRI White:70/Warm White:75(Typ.)
Operating Temperature -25°~50°C -25°~50°C -25°~50°C -25°~50°C
Storage Temperature -40°~60°C -40°~60°C -40°~60°C -40°~60°C
RH 10%~80% 10%~80% 10%~80% 10%~80%
Startor Non
Body Material Steel with white paint
Cover Material PC Diffused
Warranty 2 year,extended warranty available
